Recognizing our strength and expanding cooperation
1、Performance characteristics of the ceramic metal composite vertical mill roller/table liners developed by our company
Safe and reliable structure
The ceramic metal composite roller sleeve is composed of a wear-resistant strip composed of ceramic and high chromium alloy and a high-toughness ductile iron base material. The unique structure has the characteristics of wear resistance and stability
Better wear resistance
The wear-resistant strip is compounded with high-hardness ceramic, which increases the wear resistance by 2-3 times, and the wear is even, which can keep the original appearance of the wear parts for a long time, and the operation stability is higher
High grinding efficiency
After the wear-resistant parts are worn, a ceramic metal honeycomb structure is formed on the surface, which increases the surface and material grinding area and bite force, and improves the grinding efficiency
Personalized solution design
According to the customer's wear conditions, the wear-prone area is enhanced and the wear line is more reasonable
High economic benefits
Long service life, high stability, reduce production losses caused by downtime replacement or repair, reduce maintenance costs, and have stronger maintenance planning
Material saving and environmental protection
Avoid harmful gases generated during the surfacing process of alloy roller sleeve linings, while reducing the use of steel and reducing carbon dioxide emissions

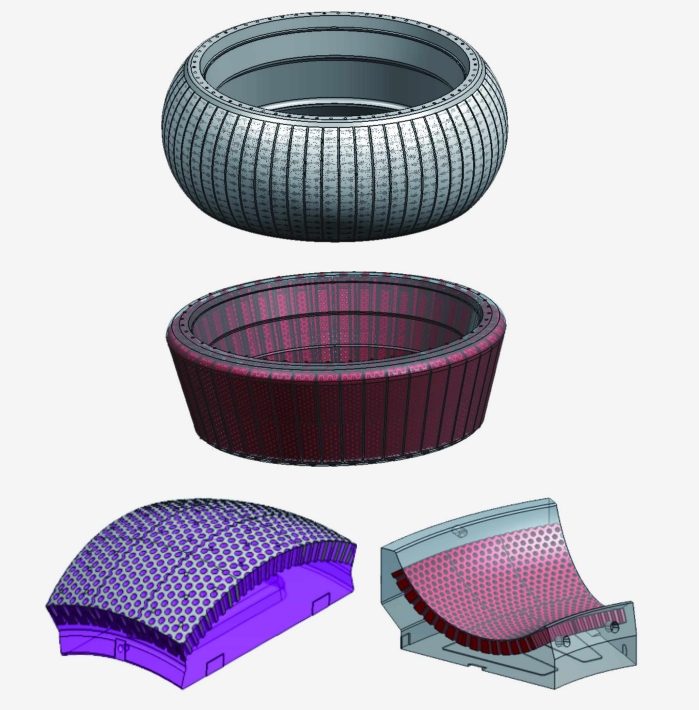

2、Performance characteristics and structural diagram of ceramic-metal composite vertical mill roller/grinding table liner
3、Application cases of ceramic metal composite vertical mill roller/grinding table liner
RM51/26 Raw Material Vertical Mill for a Cement Company
Material
Date of commissioning
Date of inspection
Elapsed time
（h）
Maximum wear depth（mm）
Average wear depth（mm）
Output per hour（t/h）
High chromium cast iron
Late January 2018
Early May 2018
1840
32
17
380
Hardfacing composite
18
Ceramic metal composite
Late May 2020
Early May 2021
8110
36
28
397

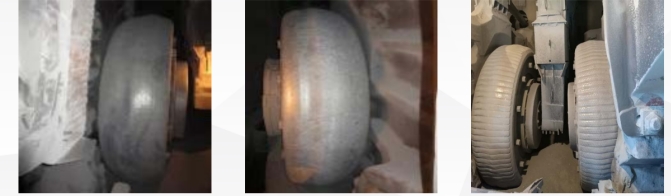

High chromium cast iron grinding roller Hardfacing grinding roller Ceramic metal composite grinding roller
We will fully understand your working conditions and recommend the most appropriate material selection. Provide drawings based on your machine models and spare parts dimensions.
